Beronet
From VoIP.ms Wiki
beroNet is Europe's leading manufacturer of ISDN, Analog, Hybrid and GSM VoIP access technologies. The following section describes the configuration to configure a VoIP.ms SIP Trunk on a beroNet VoIP gateway.
Contents |
To start, you will need to validate the version of your beroNet Gateway, it's need to be at the firmware version 16.15 or higher.
This example are base on an ISDN-PBX with PRI/BRI interfaces who is connected to a BeroNet gateway on a site and the other one on another site, we will explain you how to link a VoIP.ms SIP-Trunk.
Configuration Steps:
1. Hardware Settings
2. ISDN Portgroup configuration
3. General SIP Settings
4. Create a SIP Account
5. Dialplan configuration
Connection Settings SIP Trunk
You will need the following settings from your VoIP.ms account.
- SIP username from your sub account - Your sub account password - Your VoIP.ms server - The SIP Transport-Procol is UDP
SIP General Settings
To be able to connect your SIP Account, you will need to create a SIP Trunk. To do so, go to the top navigation menu and clic on "SIP+".
Once you are at the "SIP CONFIGURATION" page, you will need to add a new trunk by clicking on "Add"
On the top menu SIP, "SIP General Options" you can modify general SIP-Account Settings.
Depending on how/where you are going to use the beroNet gateway, you will need to add "port forwarding rules" on your Route for the SIP Bindport 5060 and the Audion RTP Range 10000-20000.
SIP Account

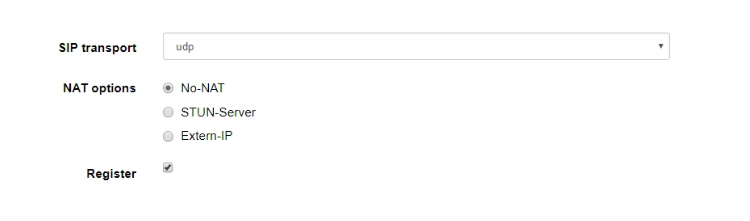

When the information is entered, you will need to check the box Register under the option SIP Configuration.
