beroNet is Europe's leading manufacturer of ISDN, Analog, Hybrid and GSM VoIP access technologies. The following section describes the configuration to configure a VoIP.ms SIP Trunk on a beroNet VoIP gateway.
Contents |
To start, you will need to validate the version of your beroNet Gateway, it's need to be at the firmware version 16.15 or higher.
We will show you the configuration for a base on an ISDN-PBX with PRI/BRI interfaces who's connected to a BeroNet gateway, we will explain you how to link a VoIP.ms SIP-Trunk.
Connection Settings SIP Trunk
You will need the following settings from your VoIP.ms account.
SIP General Settings
To be able to connect your SIP Account, you will need to create a SIP Trunk. To do so, go to the top navigation menu and clic on "SIP+".
Once you are at the "SIP CONFIGURATION" page, you will need to add a new trunk by clicking on "Add"
On the top menu SIP, "SIP General Options" you can modify general SIP-Account Settings.
Depending on how/where you are going to use the beroNet gateway, you will need to add "port forwarding rules" on your Route for the SIP Bindport 5060 and the Audion RTP Range 10000-20000.
To start, please login into your BeroNET VoIP Appliance.
SIP Account
Sip Configuration
At this part, you will need to enter the informations of your VoIP.ms account.
- Name: VoIPms (Or the name of your choice)
- Server Address: Your preferred VoIP.ms Server
- User: Your sub account username
- Authentification user: Your sub account username
- Secret: Your sub account password
- Displayname: Is your Outbound Caller ID Name (Usualy not exced 15 caracters for Landline caller ID Display)
- SIP Transport: You need to choose UDP
- NAT options: Use the option by default No-NAT.
- Register: Check the box
Advanced SIP Settings (More)
Under the menu "more" you don't have to change anything because the default settings of the gateway are ok.

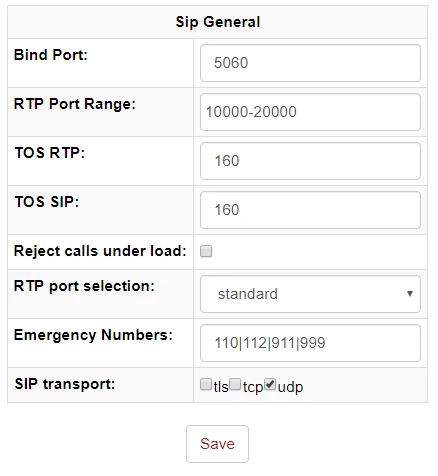

SIP General
You will need to ajust the RTP Port Range under "SIP General" settings to this value.
Bind Port: 5060
RTP Port Range: 10000-20000
TOS RTP: 160
TOS SIP: 160
Reject Calls under load: [unchecked]
RTP Port section: standard
SIP transport: udp
Finally we have to set the Country and City Code, as well as the International prefix, for instance the settings for Germany Berlin are:
International Code: 011 (without trailing 00) National Code: 1 (without trailing 0) International prefix 00
Furthermore you can choose the Destination and Source Number Format. Deafult is 00 (int) (nat) (num)
Hardware Settings
Under the menu "Hardware" you can find all settings in regards to the hardware you are using. Set the PRI to NT mode by modifing the Type settings. Same applies to BRI ports. Furthermore set the "Clock mode" to InernalCrystal".
ISDN Port Groups
In this part, you will need to create a new group for your PRI and give them the proper name. To do so, navigate to the navigation bar and select under the menu "PSTN+", select "ISDN PRI".
Then, you need to set the country and the city code, for example, the configuration is for American Canada/USA)
Country Code: -Leave empty- City Code: -Leave empty-
Dialplan configuration
FAX
You will be able to use Fax over G.711 as well as is using the T.38 protocol with your fax if your sub account is linked on it. Please note that the T.38 Faxing is currently in BETA Testing Phase.
Please refer to our Wiki Virtual Fax T.38 page to know how to link a Fax to a sub account.
CLIP / CLIP No Screening
VoIP.ms Trunks support "CLIP No Screening" which means you can present any number as outbound caller ID, regardless if it’s associated with your account or not.
For this to work, in the Outbound Caller ID can be set, the numbers must be input in either a 10-digit (e.g. 6471234567), 11-digit format (e.g. 16471234567) or E164 format (e.g. +16471234567).
If your caller id it set direclty by your sub account, in your VoIP.ms customer portal. No matter what callerid you specify in your BeroNET VoIP gateway SIP settings, the CallerID Number will be the one indicated in the sub account. In this case, you will need to remove the Outbound CallerID Number from your sub account in your VoIP.ms customer portal.
