Grandstream GXP2135 IP Phone
SIP ACCOUNT
Once you have connected your device to your local connection, it will be necessary to obtain the local IP address that was designated for it.
-Go to:
Menu>> Status>> Network Status>> IPv4 Address
-Now that you have the Local IP address, open it in your web browser of preference.
-Use the following credentials to access to the configuration:
Username: admin
Password: admin
-Once you see the settings page, go to the following:
Account>> Account#>> General Settings
-Change the following settings according to the information of your account:
a. Account Name: The name for this account that will be displayed on the LCD screen of your phone.
b. SIP Server: The server that you will use for the registration of this device. (Notice that it is necessary to use the same server for both the device and the DID number in order to get incoming calls correctly)
c. SIP User ID: The account or sub account number that you will be using for this line.
d. Authenticate Password: The password for the account or sub account you will be using for this line.
e. Name: The name that will be used as Caller ID Name. (Notice that this only applies for Canada)
f. Save and Apply
Once this is done, we will need to set the time that the device will send the information for it's registration status.
-Please go to the following:

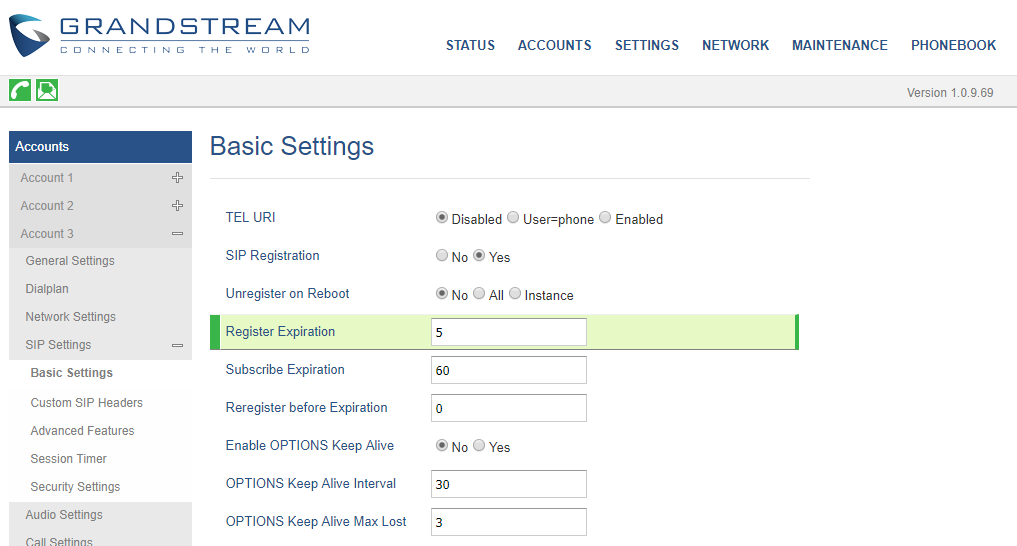

Account#>> SIP Settings>> Basic Settings
- Change the following:
SIP Registration: Yes
Register Expiration: 5 (this is in minutes)
-Save and Apply
