Talkswitch PBX
From VoIP.ms Wiki
In order to properly register your TalkSwitch PBX you need first to activate one profile and then configure a VoIP number for that profile.
Contents |
Setting the VoIP.ms Profile
- Select the VoIP Configuration page.
- Select a Profile other than the TS profile.
- Make sure to check the Activate Profile box.
- Under Service Provider select Manual Setup
- Profile Name: VoIP.ms (or something that help you identify this profile)
- Disable public IP address substitution leave this unchecked.
- Check Register with authentication username.
- Check Enable NAT Keep alives (You can keep the default NAT settings)
- Codec Options: Here make sure to select only the codec supported for VoIP.ms (g.729 and g.711u). And if you have enough bandwidht you should select the g.711u as Preferred codec.
Provisioning Details
- Proxy Server name: server.voip.ms (one of the voip.ms servers, e.g. atlanta.voip.ms)
- Registrar server name: same as above
- Outbound proxy: same as above
- Realm/domain: same as above
Configuring a VoIP number with VoIP.ms
Note: You don't need to purchase a DID number for outgoing calls. The VoIP number is used as your CallerID number.

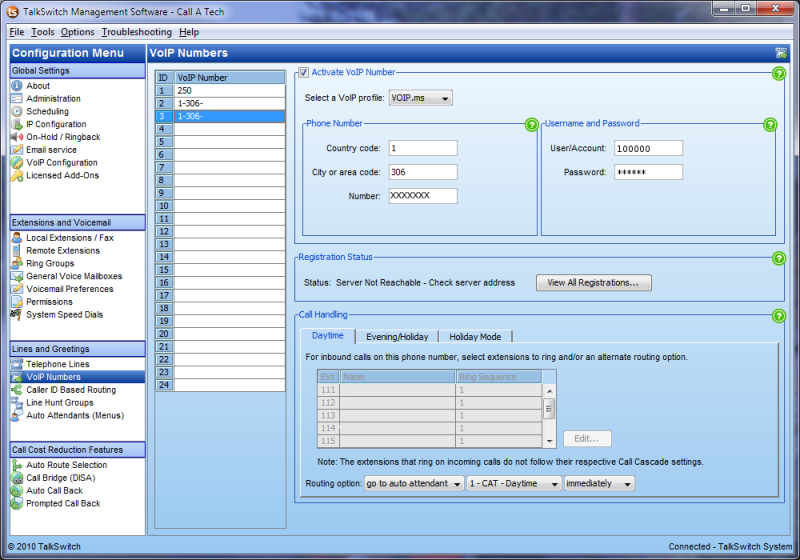

- Select the VoIP Numbers page
.png&filetimestamp=20110628181246)
- Select one of the empty voip number slots and then check the Activate VoIP number
- Select a VoIP profile: Here select the profile create for VoIP.ms
Phone Number
Here you can set the callerID number that you want (or your DID number if you want to receive incoming calls), you need to enter the number filling the 3 fields.
- Country Code: 1
- City or area code: 555
- Number: 4443322
Username and Password
- User/Account: 100000 (your SIP account with VoIP.ms, either the main account or one of your subaccounts)
- Password: (the password for your account. If you're using the main account this is the same you use to login in your Customer Portal, unless you change the password)
